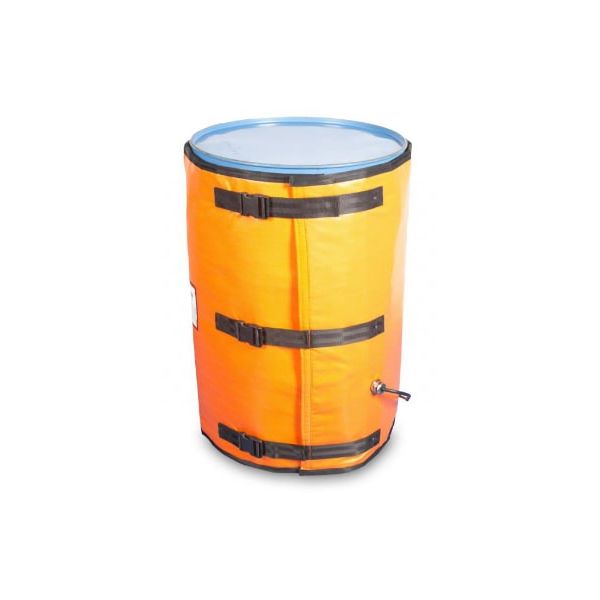

Inteliheat® 55 Gallon Drum Heating Blanket

ITEM #: IH-2D-Z1

Product Description

This ATEX and IECEx Zone 1 and 2 rated jacket uses a completely new and proprietary design.

It is constructed with custom elastomer and silicone coating glass cloth material and high density fiberglass insulation. The heating medium uses a patented technology of carbon rich semi-conducting positive temperature coefficient membranes. Safe operating conditions are maintained even in the presence of potentially explosive gases. No transformers are required as it operates using standard ac supply voltages.

The Inteliheat is ideal for gentle warming and to avoid winter freezing. or faster heating rates and melting solids at higher temperatures, the Thermosafe Induction Heater is recommended.

The Inteliheat is designed for use with plastic or steel drums. An Inteliheat insulated lid may be used in certain situations to reduce heat loss and improve heating times.

Special or non-standard sizes made to order, please email us with your container dimensions for a quotation.

          Symbol for ATEX certified for electrical and mechanical equipment intended for use in explosive atmospheres.

Sale Price: $3,344.00

Regular Price: $3,520.00




Availability: AVAILABLE

Sale Price: $3,344.00

Regular Price: $3,520.00

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

Safe heating of 55 gallon drum (steel and plastic), even in hazardous areas. Ideal for gentle warming and to avoid winter freezing.

  • Fully ATEX and IECEx certified for Zone 1 & 2 Areas.
  • Flexible Heating Blankets that easily wrap around a standard 55 gallon drum.
  • Effortless to use with a certified self-limiting top temperature.
  • Insulated with high density fiberglass for good energy efficiency.
  • Can be used with plastic or steel 55 gallon drums.
  • Single-phase up to 240 volt supply.

Additional Information

SKU IH-2D-Z1
Technical Information
Single Phase
Up to 240v, 50/60 Hz ac
Current/ Power Consumption
Up to 3A / 720W
Overall length 77"
Overall height 34"
Weight 20 Lbs
Standards  EN 60079-0:2004, EN 60079-7:2003

Class II Appliance

Ingress Protection IP44

Hazardous Area Certification

Dimensions (Internal) N/A

Shipping Guidelines

Items in stock should ship within 1-5 Days. Unless on back order, too large, or heavy, to ship via UPS, Fed-Ex, USPS. For more information on your order please contact us.
