InteliHeat® Faratherm Induction Base Heater

ITEM #: IH-PL020-FTH

Product Description

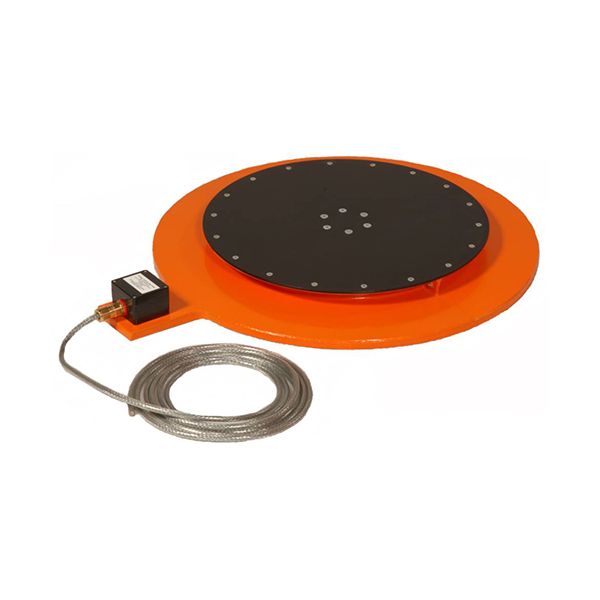

The Faratherm Induction Base Heater consists of an induction coil, encapsulated in glass reinforced resin with a heating plate located on top. Powered by a single phase as mains supply, it will heat the base of drums and containers placed onto it.

The Faratherm is safe to use in hazardous areas (zones 1 and 2). It is fully certified to meet both ATEX and IECEx requirements. With an ingress protection rating of IP66 and no moving parts, it is suitable for use in harsh environments or where regular cleaning is required.

The plate is heated by induction and therefore there are no heating elements. The maximum temperature is self limiting- this is governed by the material being heated and the heating arrangement. In most applications additional temperature regulation is not required, however control options are available, please ask for more information.

The Faratherm Induction Base Heater consists of an induction coil, encapsulated in glass reinforced resin with a heating plate located on top. Powered by a single phase as mains supply, it will heat the base of drums and containers placed onto it. The Faratherm is safe to use in hazardous areas (zones 1 and 2). It is fully certified to meet both ATEX and IECEx requirements. With an ingress protection rating of IP66 and no moving parts, it is suitable for use in harsh environments or where regular cleaning is required. The plate is heated by induction and therefore there are no heating elements. The maximum temperature is self limiting- this is governed by the material being heated and the heating arrangement. In most applications additional temperature regulation is not required, however control options are available, please ask for more information.

          Symbol for ATEX certified for electrical and mechanical equipment intended for use in explosive atmospheres.


Click to View/Download Spec Sheet

Sale Price: $3,572.00

Regular Price: $3,760.00




Availability: AVAILABLE

Sale Price: $3,572.00

Regular Price: $3,760.00

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

Provides heat to the base of steel or plastic 55 gallon drums and smaller containers. Suitable for use in Zone 1 & 2 rated hazardous areas (ATEX and IECEX Certified).

  • ATEX, IECEx and ETL certified for Zone 1 & 2.
  • Can be used on its own or with Thermosafe.
  • Up to 40% time reduction when melting solids with both units.
  • Will work with steel or plastic drums.
  • Induction heating with no radiant elements and no moving parts, so no maintenance
  • IP66 hose-down rated.
  • Single-phase up to 240 volt supply.
  • Can be used with any size drum up to 55 gallons.

Additional Information

SKU IH-PL020-FTH
Technical Information
Single Phase
240v, 50/60 Hz ac
Current/ Power Consumption
7A / 500W
Heating Plate Height 2"
Weight 100 lbs
Heating Plate Diameter 22"
Overall Width 35"
Standards EN 60079-0:2004, EN 60079-7:2003, IEC 61241-0:2004, EN 61241-1:2004
EC-Type Examination Certification Number Sira 07ATEX3034X
IECEx Examinatioin Certification Number IECEx SIR 07.0017X

(Note: inductive power factor)

Class II Appliance

Ingress Protection IP66

Dimensions (Internal) N/A
