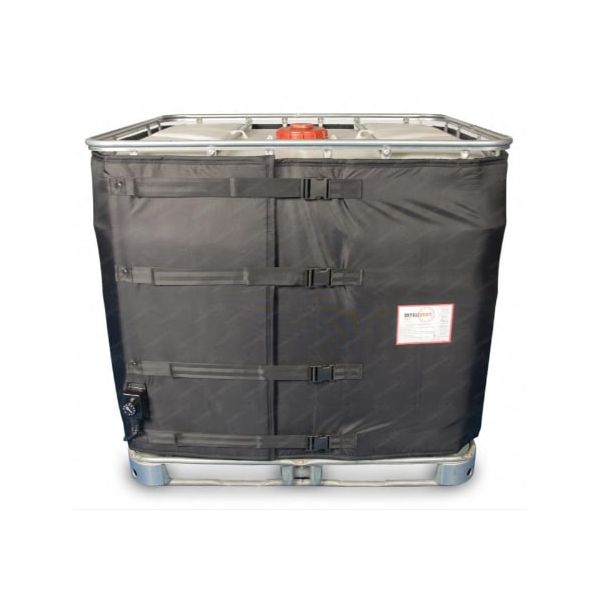

InteliHeat® Single-Circuit IBC1

ITEM #: IH-SC-IBC1

Product Description

Single-circuit 'IBC1' model

InteliHeat® Thermulate® IBC1 is ideal for gentle warming and avoiding inter freezing.

  • Reduce viscosity and avoid winter freezing.
  • Cost effective alternative when fast heating times are not required.
  • Black nylon fabric outer layer, high-temperature silicone-coated glass-cloth inner layer.
  • High grade thermal insulation to reduce heat loss and increase efficiency while providing protection for the operator.
  • Fits both 275Gal and 330Gal totes, specific lids available for each size to reduce heat loss to a minimum.
  • Fitted with adjustable retaining straps and quick release buckles.
  • Flexible - conforms to the container wall providing optimal thermal coupling Delivers heat over a large surface area, minimizing the possibilities of damaging the product.
  • Fit to forget, built to last - no regular maintenance required.
  • Safe to use 24/7.
  • 7 ft. (2m) premium oil, water, and abasion resistant SOOW power cable.
  • Fitted with NEMA 1-15P plug.
  • Double insulated product.
  • Ambient temperature: -40°F to +104°F (-40°C to +40°C)
  • ETL approved to UL and CSA standards.
  • Waterproof and custom sizes available.

Special or non-standard sizes made to order, please email us with your container dimensions for a quotation.

Sale Price: $1,282.50

Regular Price: $1,350.00




Availability: AVAILABLE

Sale Price: $1,282.50

Regular Price: $1,350.00

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

InteliHeat® Single Circuit IBC1

InteliHeat® Thermulate® IBC1 is ideal for gentle warming and avoiding winter freezing.

  • For gentle warming.
  • Avoid winter freezing.
  • Reduce viscosity.
  • Cost effective alternative when the faster heating times are not required


To fit container: 275 Gallon / 1000 Liter
Thermostat: Adjustable -5-40°C / 23-104°F
Size: Circumference 160"-169.5" / 37.5" Height (4060 - 4310mm / 950mm)

Additional Information

SKU IH-SC-IBC1
Technical Information
Supply/Power
120v or 240v; IBC1: 1550 watts
Electrical insulation
Double insulated.
Power cable 15ft PVC insulated, sheathed, galvanized steel wire braided, per circuit.
Control Integrated adjustable thermostats; IBC1 standard: -5-40°C
Jacket material Outer face, single sided hydrolysis resistant, polyurethane coated polyamide substrate with fluorocarbon finish. Base fabric nylon 66 standard. Inner face, custom polyester coated glass cloth.
Insulation Stitch-bonded, needled, non-combustible glassfiber mat.
Element Silicone rubber insulated spirally wrapped resistance wire.
Ingress Protection At least IP4x
Dimensions (Internal) N/A
