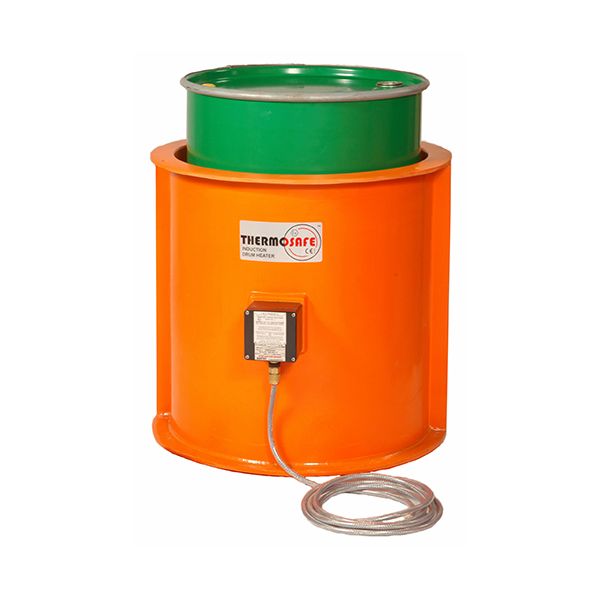

Thermosafe® Type A

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Thermosafe® Type A
  • Thermosafe® Induction Heater Type A

InteliHeat® Thermosafe® Induction Heater Type A

ITEM #: IH-TS-IHTA

Product Description

The Thermosafe® us a single induction coil, wholly encapsulated in a cylinder made from a glass reinforced resin specifically developed for chemical plants. The cylinder is simply placed over the drum. Contact is not required.

The coil is connected to a single phase AC mains supply and generates heat direct and uniformly in the drum wall. Energy transfer is by alternating magnetic field and thus there is no heat transfer by the conventional and inefficient means of radiation or convection. As there are no hot elements, the heat remains substantially cooler than the drum being heated.

  • Temperature is based on input voltage.
  • Max temperature 123˚C (254F) @ 240V  —Drum wall temperature.
  • BF400 Power controller available (OPTIONAL)
          Symbol for ATEX certified for electrical and mechanical equipment intended for use in explosive atmospheres.


Click to View/Download Spec Sheet



Sale Price: $5,092.00

Regular Price: $5,360.00




Availability: AVAILABLE

Sale Price: $5,092.00

Regular Price: $5,360.00

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

Designed to heat 55 gallon drums or smaller steel vessels. It is a proven alternative to multi-drum ovens and the solution to a host of process heating problems, even in Hazardous Areas.

  • Fully ATEX, IECEx and ETL certified for Zones 1 & 2
  • Fast heat rate- typically up to 25 degrees F per hour.
  • Incredibly energy efficient: 50% saving compared with traditional heating methods.
  • Proven over 90% savings compared to steam ovens costs.
  • Induction heating with no radiant elements and no moving parts, so no maintenance.
  • Lasts a lifetime.
  • IP66 hose-down rated.
  • Complete access to top of drum for pumps, stirrers, etc.
  • Instant and uniform heat.
  • Single-phase up to 240 volt supply

Additional Information

SKU IH-TS-IHTA
Technical Information
Single Phase
240v, 50/60 Hz a.c.
Current/ Power Consumption
Switch on 21A, 2750W
Height 28"
Weight 106 lbs
Overall diameter 30"
Internal diameter 25"
Certification to IEC Standards 60079-0, 60079-7, 61241-0, 61241-1. For use in Zones 1 and 2

(Note: inductive power factor) Running 18A, 2250W

Class II Appliance

Dimensions (Internal) N/A
