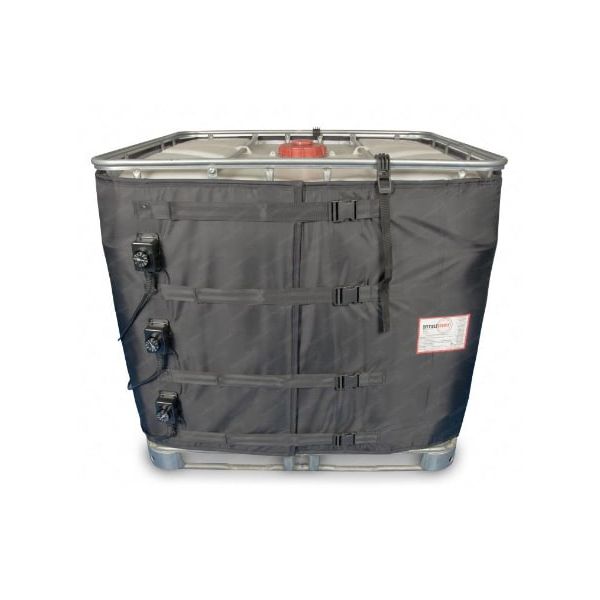

InteliHeat® Triple Circuit IBC3

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • InteliHeat® Triple Circuit IBC3

InteliHeat® Triple-Circuit IBC3

ITEM #: IH-TC-IBC3

Product Description

Triple-circuit 'IBC3' model

InteliHeat® Thermulate® IBC3 is a super high-power heating jacket to achieve maximum performance and temperatures.

  • Three high power heating circuits independently controlled.
  • Black nylon fabric outer layer, high-temperature silicone-coated glass-cloth inner layer. High grade thermal insulation to reduce heat loss and increase efficiency while providing protection for the operator.
  • Fits both 275Gal and 330Gal totes, specific lids available for each size to reduce heat loss to a minimum.
  • Fitted with adjustable retaining straps and quick buckles.
  • Flexible - conforms to the container wall providing optimal thermal coupling.
  • Delivers heat over a large surface area, minimizing the possibilities of damaging the product.
  • Fit and forget, built to last - no regular maintenance required.
  • Safe to use 24/7.
  • 7 ft. (2m) premium oil, water, and abrasion resistant SOOW power cable.
  • Fitted with NEMA 1-15P plug.
  • Double insulated product.
  • Ambient temperature: -40°F to +104°F (-40°C to +40°C)
  • ETL approved to UL and CSA standards.
  • Waterproof and custom sizes available.

Special or non-standard sizes made to order, please email us with your container dimensions for a quotation.

Sale Price: $2,517.50

Regular Price: $2,650.00




Availability: AVAILABLE

Sale Price: $2,517.50

Regular Price: $2,650.00

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

InteliHeat® Triple-Circuit IBC3

InteliHeat® Thermulate® IBC3 is a super high-power heating jacket to achieve maximum performance and temperatures.

  • For customers seeking maximum power delivery.
  • Three high power heating circuits enable the top, middle and bottom of each jacket to be separately controlled with integrated thermostats.
  • Constructed in HiHeat style.
  • Supplied together with an IBC Insulated Lid as standard within the price of the jacket.

To fit container: 275 Gallon / 1000 Liter
Thermostat: Adjustable 0-90°C / 0-194°F
Size: Circumference 160" - 169.5" / 37.5" Height (4060 - 4310mm / 950mm)

Additional Information

SKU IH-TC-IBC3
Technical Information
Supply/Power
120v or 240v; IBC2: 3 X 1330 watts (total 3990watts)
Electrical insulation
Double insulated.
Power cable 15ft PVC insulated, sheathed, galvanized steel wire braided, per circuit.
Control Integrated adjustable thermostats; IBC3 standard: 0-90°C
Jacket material Outer face, single sided hydrolysis resistant, polyurethane coated polyamide substrate with fluorocarbon finish. Base fabric nylon 66 standard. Inner face, custom polyester coated glass cloth.
Insulation Stitch-bonded, needled, non-combustible glassfiber mat.
Element Silicone rubber insulated spirally wrapped resistance wire.
Ingress Protection At least IP4x
Dimensions (Internal) N/A
