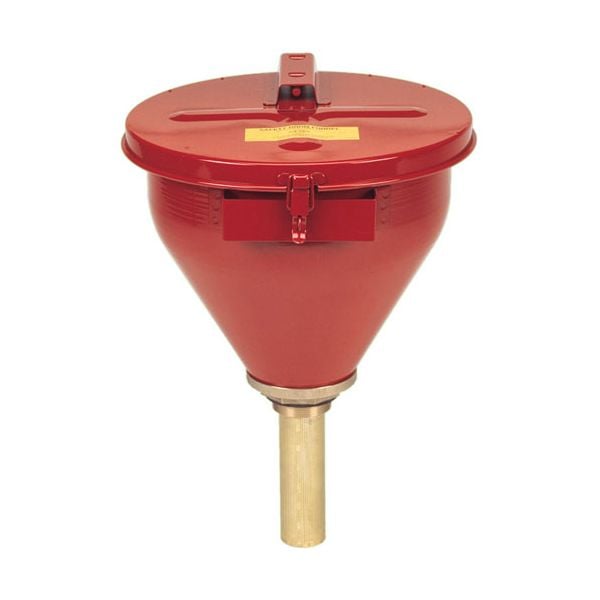

Large Steel Funnel with Self-closing Cover and 32" (813mm) Flame Arrester

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Large Steel Funnel with Self-closing Cover and 32" (813mm) Flame Arrester
  • Large Steel Funnel with Self-closing Cover
  • Large Steel Funnel

Large Steel Funnel with Self-closing Cover and 32" (813mm) Flame Arrester. For use with Flammables.

ITEM #: JR-08205

Product Description

Model #08205 - Easy pouring during liquid waste collection.

• Wide-mouth opening with hinged,
stay-open lid

• Built-in flame arrester on
most models to prevent fire intrusion

• Galvanized steel with durable epoxy
powder coat finish

• Self-closing lid in case of fire

It is important to segregate incompatible wastes to avoid chemical reactions or explosions. Drums should be properly stored indoors or in a weather-protected area outside. Funnels may be used and left in place on the drum.

Ships within: 1-5 business days.

Sale Price: $383.44

Regular Price: $403.62




Availability: AVAILABLE

Sale Price: $383.44

Regular Price: $403.62

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

Wide-mouth Drum Funnels are a must when transferring liquids into the relatively small 2" bung on a 30- or 55-gallon (110 & 200L) drum. We offer funnels with superior safety features that make them ideal for use with solvent, thinner, oil and paint wastes. Heavy, 18-gauge galvanized steel with electrostatically applied epoxy powder coat paint provides durability and chemical resistance. All funnels comply with EPA and OSHA regulations and are FM approved. Larger funnels accept a lock to prevent unauthorized access.

Funnels intended for use with flammables are fitted with a brass flame arrester that absorbs and dissipates heat, preventing any external ignition source (like sparks from power tools, static electricity or cigarettes) from reaching the drum’s flammable contents.

Self-close models have a fusible link that melts at 165ºF (74ºC). The cover then automatically shuts in case of a fire to extinguish the flames. Justrite’s safety funnels keep your workplace clean, safe and in compliance with environmental, health and safety regulations.

 WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Additional Information

SKU JR-08205
Technical Information

Description:
Large Steel Funnel with Self-closing Cover and 32" (813mm) Flame Arrester. For use with Flammables.

Funnel Size: Dia. x Ht (mm)
10¾" x 10" (273 x 254)

Mouth: Dia. (mm)
10¾" (273)

Funnel: Capacity
2.6 gallon/10L

Approv./Lstg. Regulation
FM

Model No.
08205
