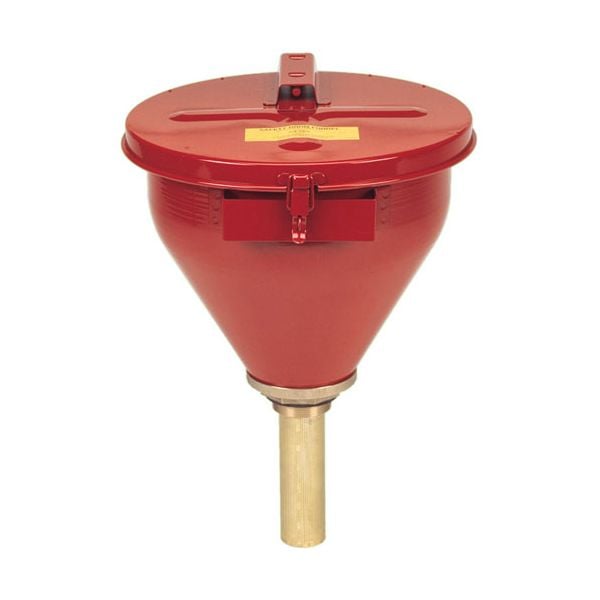

Large Steel Funnel with Self-closing Cover and 33" (838mm) Brass Tube

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Large Steel Funnel
  • Large Steel Funnel with Self-closing Cover and 33" (838mm) Brass Tube. For use with Viscous Liquids.
  • Large Steel Funnel with Self-closing Cover and 33" (838mm) Brass Tube

Large Steel Funnel with Self-closing Cover and 33" (838mm) Brass Tube. For use with Viscous Liquids.

ITEM #: JR-08208

Product Description

Model #08208 - Easy pouring during liquid waste collection.

• Wide-mouth opening with hinged,
stay-open lid

• Built-in flame arrester on
most models to prevent fire intrusion

• Galvanized steel with durable epoxy
powder coat finish

• Self-closing lid in case of fire

It is important to segregate incompatible wastes to avoid chemical reactions or explosions. Drums should be properly stored indoors or in a weather-protected area outside. Funnels may be used and left in place on the drum.

Ships within: 1-5 business days.

Sale Price: $458.24

Regular Price: $482.36




Availability: AVAILABLE

Sale Price: $458.24

Regular Price: $482.36

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

Wide-mouth Drum Funnels are a must when transferring liquids into the relatively small 2" bung on a 30- or 55-gallon (110 & 200L) drum. We offer funnels with superior safety features that make them ideal for use with solvent, thinner, oil and paint wastes. Heavy, 18-gauge galvanized steel with electrostatically applied epoxy powder coat paint provides durability and chemical resistance. All funnels comply with EPA and OSHA regulations and are FM approved. Larger funnels accept a lock to prevent unauthorized access.

Funnels intended for use with flammables are fitted with a brass flame arrester that absorbs and dissipates heat, preventing any external ignition source (like sparks from power tools, static electricity or cigarettes) from reaching the drum’s flammable contents.

Self-close models have a fusible link that melts at 165ºF (74ºC). The cover then automatically shuts in case of a fire to extinguish the flames. Justrite’s safety funnels keep your workplace clean, safe and in compliance with environmental, health and safety regulations.

Additional Information

SKU JR-08208
Technical Information

Description:
Large Steel Funnel with Self-closing Cover and 33" (838mm) Brass Tube. For use with Viscous Liquids.

Funnel Size: Dia. x Ht (mm)
10¾" x 10" (273 x 254)

Mouth: Dia. (mm)
10¾" (273)

Funnel: Capacity
2.6 gallon/10L

Approv./Lstg. Regulation
FM

Model No.
08208

Shipping Guidelines

Items in stock should ship within 1-5 Days. Unless on back order, too large, or heavy, to ship via UPS, Fed-Ex, USPS. For more information on your order please contact us.

Shipping Method

Use All Method
