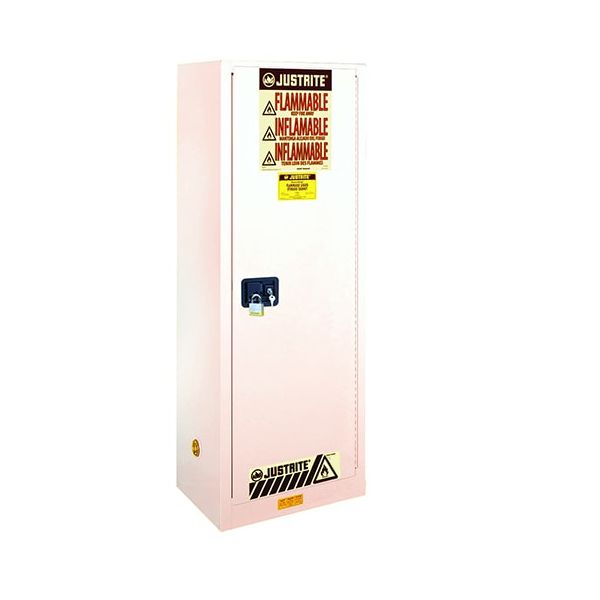

Sure-Grip® EX Slimline Flammable Safety Cabinet, Cap. 22 gallons, 3 shelves, 1 mc door, White.

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Sure-Grip® EX Slimline Flammable Safety Cabinet, Cap. 22 gallons, 3 shelves, 1 mc door, White.

Sure-Grip® EX Slimline Flammable Safety Cabinet, Cap. 22 gallons, 3 shelves, 1 mc door, White.

ITEM #: JR-892205

Product Description

Use alone or alongside larger cabinets for expanded storage when floor space is limited. The standard slimline cabinet is 18” (457-mm) deep and fits flush alongside a 45-gallon (170-L) cabinet. The deep slimline cabinet is 34” (864-mm) deep and fits alongside a 60- or 90-gallon (227- or 341-L) cabinet. Both cabinets measure only 23-1/4” (591-mm) wide. These cabinets have all the great features and benefits of our classic cabinets as outlined below.

Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Designed to meet OSHA and NFPA standards, Sure-Grip® EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2” (38-mm) of insulating air space for fire resistance. High-performance, self-latching doors close easily and securely for maximum protection under fire conditions. Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.

For added security, U-Loc handle comes with a cylinder lock and key set or accepts an optional padlock. Haz-Alert reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.

Patented SpillSlope® galvanized steel shelves direct spills to back and bottom of a leakproof 2” (51-mm) bottom sump. They adjust on 3” (76-mm) centers for versatile storage. Cabinets also feature dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label. Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.

Manual-close door(s) opens to a full 180 degrees and self-latches when pushed closed. Self-close door(s) shuts and latches automatically when a fusible link melts at 165°F (74ºC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents.

All door styles meet OSHA and NFPA 30; self-close door styles also meet NFPA 1 and the International Fire Code.

Most cabinets are FM approved and all come with a ten-year warranty.

Sale Price: $1,180.66

Regular Price: $1,242.80


Availability: AVAILABLE

Sale Price: $1,180.66

Regular Price: $1,242.80

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

Material Specifications: 18 Ga CR Steel
Capacity: 22 gallon(s)
  83 liter(s)
No. of Doors: 1
Door Type: Manual
No. of Shelves: 3
Adjustable Shelves: Yes
Dimensions, Exterior: 23.25" W x 65" H x 18" D
  591 W x 1651 H x 457 D (mm)
Dimensions, Interior: 20" W x 60.5" H x 14.562" D
  508 W x 1537 H x 370 D (mm)
Approvals: FM
Compliance: NFPA, OSHA

Additional Information

SKU JR-892205
Color White
Dimensions (Internal) 20" W x 60.5" H x 14.562" D
Dimensions 23.25" W x 65" H x 18" D
