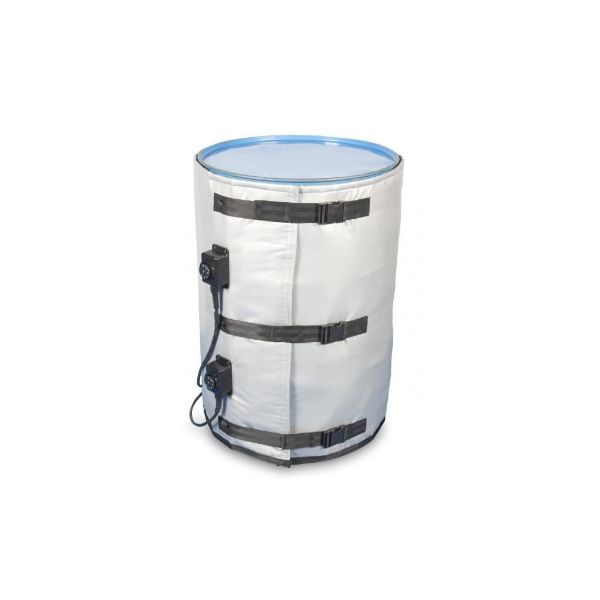

Flexible Heating Jacket - HPD2

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Flexible Heating Jacket - HPD2
  • High Power

Thermulate® 55 Gallon High Power Flexible Heating Jacket - HPD2


Product Description

The High Power range - 2X-Variable Thermostat 0-160°C (320°F)

  • Maximum power to reach highest temperatures. 32-320°F (0-160°C) adjustable  thermostat fitted as standard.
  • Special formulated high-temperature, chemically resistant silicon-coated glass-cloth used on both sides of the jacket to extend product life in demanding appliations.
  • High grade thermal insulation to reduce heat loss and increase efficiency while providing protection for the operator.
  • Fitted wih adjustable retaining straps and quick release buckles.
  • Flexible - conforms to the container wall providing optimal thermal coupling.
  • Delivers heat over a large surfacearea, minimizing the possibilities of damaging the product.
  • Fit and forget, built to last - no regular maintenance required.
  • Safe to use 24/7.
  • 7 ft. 2(m) premium oil, water, and abrasion resistant SOOW power cable.
  • Fitted with NEMA 1-15P plug.
  • Double insulated product.
  • Ambient temperature: -40°F to +104°F (-40°C to +40°C)
  • ETL approved to UL and CSA standards.
  • Waterproof and custom sizes available.

Special or non-standard sizes made to order, please email us with your container dimensions for a quotation.

Click to View/Download Spec Sheet


Sale Price: $2,565.00

Regular Price: $2,700.00


Availability: AVAILABLE

Sale Price: $2,565.00

Regular Price: $2,700.00

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

Thermulate® 55 Gallon High Powert Flexible Heating Jacket - 2X-Variable Thermostat 0-160°C(320°F)
  • High-grade thermal insulation to reduce heat-loss and increase efficiency whilst providing protection for the operator.
  • Fitted with adjustable retainingstraps and quick release buckle clips.
  • Integrated fully adjustable thermostats.
  • 120 volt or 240 volt versions available from stock.
  • Ideal for wide variety of plastic, fiber and metal containers.
  • Delivers an even heat over a large surface area, minimizing the possibilities of damaging the product.
  • Fit and forget - no regular maintenance required.
  • Safe to use 24 hours a day.

Additional Information

Technical Information
Circumference / Height 71" - 76.75" / 34" (1800 - 1950mm / 864mm)
Nominal Capacity 55 Gallons
Nominal Power (240v) 2600 W
Outer Material / Inner Instulation Silicon coated glass-cloth / stitched fibreglass

Jackets are supplied with a 15' supply cable (PVC insulated, sheathed, galvanised steel wire braided and an integral 0-90°C adjustable capillary thermostat.

All jackets are 120V with optional 240V.

Dimensions (Internal) N/A
