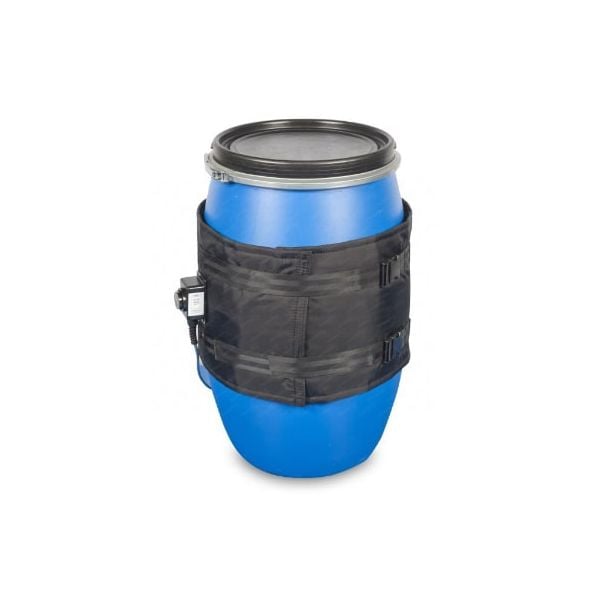

Thermulate® 30 Gallon HiHeat Flexible Heating Jacket - HHC

ITEM #: IH-T-HHC

Product Description

The HiHeat range - Varible Thermostat 0-90°C (194°F)

Drum Heating Jacket for non-hazardous ordinary locations provides a boost in power for applications/materials needing a fast heat-rate up to approximately 140-158°F (6--70°C).

  • Fitted with 32-194°F (0-90°C) adjustable thermostat.
  • Black nylon fabric outer layer, high-temperature silicone-coated glass-cloth inner layer.
  • High grade thermal insulation to reduce heat loss and increase efficiency while providing protection for the operator.
  • Fitted with adjustable retainingstraps and quick release buckles.
  • Flexible - conforms to the container wall providing optimal thermal coupling.
  • Delivers heat over a large surface area, minimizing the possibilities of damaging the product.
  • Fit and forget, built to last - no regular maintenance required.
  • Safe to use 24/7.
  • 7 ft. (2m) premium oil, water, and abrasion resistant SOOW power cable.
  • Fitted with NEMA 1-15P plug.
  • Double insulated product.
  • Ambient temperature: -40°F to +104°F (-40°C to +40°C).
  • ETL approved to UL and CSA standards.
  • Waterproof and custom sizes available.

These flexible heating jackets use specuially formulated coated glass-cloth inner layers for better heat resistance capabilities, stitched fibreglass inner for maximum heat retention and water resistant nylon outer.

Special or non-standard sizes made to order, please email us with your container dimensions for a quotation.

Click to View/Download Spec Sheet

Sale Price: $774.25

Regular Price: $815.00




Availability: AVAILABLE

Sale Price: $774.25

Regular Price: $815.00

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

Thermulate® 30 Gallon HiHeat Flexible Heating Jacket - Variable Thermostat 0-90°C (194°F)

Drum Heating Jacket for non-hazardous ordinary locations provides a boost in power for applications/materials needing a fast heat-rate up to approximately 140-158°F (60-70°C).
  • High-grade thermal insulation to reduce heat-loss and increase efficiency whilst providing protection for the operator.
  • Fitted with adjustable retainingstraps and quick release buckle clips.
  • Integrated fully adjustable thermostats.
  • 120 volt or 240 volt versions available from stock.
  • Ideal for wide variety of plastic, fiber and metal containers.
  • Delivers an even heat over a large surface area, minimizing the possibilities of damaging the product.
  • Fit and forget - no regular maintenance required.
  • Safe to use 24 hours a day.

Additional Information

SKU IH-T-HHC
Technical Information
Circumference / Height 55"-65" / 17.25" (1400 - 1650mm / 370mm)
Nominal Capacity 30 Gallons
Nominal Power (240v) 700 W
Outer Material / Inner Instulation Coated Nylon & Custom coated glass cloth / Stitched fibre glass

Jackets are supplied with a 15' supply cable (PVC insulated, sheathed, galvanised steel wire braided and an integral 0-90°C adjustable capillary thermostat.

All jackets are 120V with optional 240V

Dimensions (Internal) N/A
