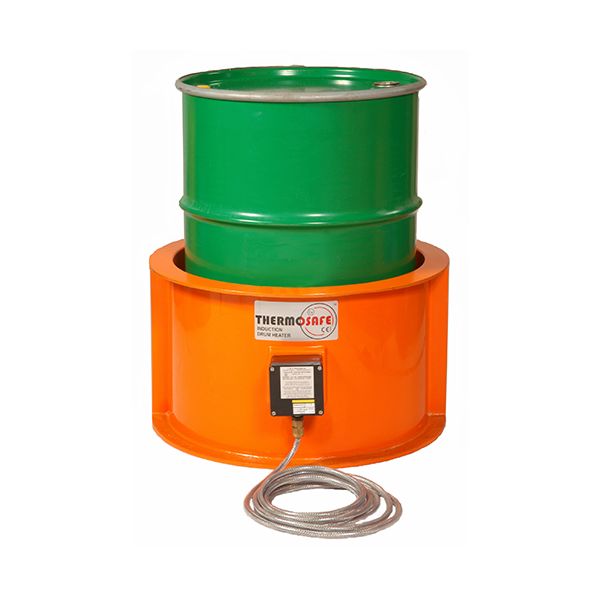

InteliHeat® Thermosafe® Induction Heater Type B

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • InteliHeat® Thermosafe® Induction Heater Type B
  • Thermosafe® Induction Heater Type B

InteliHeat® Thermosafe® Induction Heater Type B


Product Description

To complement the longstanding and successful 240v Thermosafe® Type A, the 110v Type B model is available, ideal where height is restricted, or for heating smaller containers. Two Type B heaers can also be stacked and operated at 110v or 240v.

A single Type B heater can heat the lower section of a 200L steel drum to around 110C. Two heaters can be stacked to enable the full height of the drum to reach approximately these temperatures.

Just like the Thermosafe® Type A, the Type B is suitable for use in hazardous areas, certified to ATEX and IECEx standards (zones 1 and 2).

          Symbol for ATEX certified for electrical and mechanical equipment intended for use in explosive atmospheres.

Sale Price: $3,724.00

Regular Price: $3,920.00


Availability: AVAILABLE

Sale Price: $3,724.00

Regular Price: $3,920.00

      Bookmark and Share
  1. Overview
  2. Specifications
  3. Shipping Guidelines

Product Details

Uses the same technology as the Thermosafe® Type A Induction Heater. Lighter and easier to handle, ideal where height is restricted, 2 Heaters can be stacked to heat full height of drum, 110v operation.

  • Fully ATEX, IECEx and ETL certified for Zones 1 & 2
  • Fast heat rate- typically up to 25 degrees F per hour.
  • Incredibly energy efficient: 50% saving compared with traditional heating methods.
  • Proven over 90% savings compared to steam ovens costs.
  • Induction heating with no radiant elements and no moving parts, so no maintenance.
  • Lasts a lifetime.
  • IP66 hose-down rated.
  • Complete access to top of drum for pumps, stirrers, etc.
  • Instant and uniform heat.
  • Single-phase up to 110 volt supply

Additional Information

Technical Information
Single Phase
120v, 50/60 Hz ac
Current/ Power Consumption
23A, 1500W
Overall height 17"
Weight 67 lbs
Overall diameter 30"
Internal diameter 25"
Standards  EN 60079-0:2004, EN 60079-7:2003, EN 31241-0:2006, EN61241-1:2004

Class II Appliance

Ingress Protection IP66

Hazardous Area Certification

Dimensions (Internal) N/A

Shipping Guidelines

Items in stock should ship within 1-5 Days. Unless on back order, too large, or heavy, to ship via UPS, Fed-Ex, USPS. For more information on your order please contact us.

Shipping Method

Use All Method
